Chapter 5 describes the transport model SWMM has always used: each conduit is treated as a continuously stirred tank reactor (CSTR), or optionally as a short series of them. That model is robust and inexpensive, and it is exact for the quantity it tracks — the mass leaving a link over a routing step — but it carries no information about where inside the link mass is. A slug entering a long conduit appears at the outlet immediately, diluted across the whole link volume, rather than travelling down it as a front.
OpenSWMM adds two transport engines that resolve position along a conduit, and retains the original as the default. They are selected per model with the [OPTIONS] QUALITY_SOLVER key:
QUALITY_SOLVER | Engine | Representation |
|---|---|---|
LEGACY (default) | Tanks-in-series | One or more CSTRs per link (Chapter 5) |
EULERIAN_ARD | Eulerian finite volume | Fixed cells along each conduit |
LAGRANGIAN | Lagrangian (LARD) | Water parcels that move with the flow |
All three engines share the same external loads, the same treatment expressions, the same mass-balance ledger and the same reporting surfaces. A model can be switched between them without editing anything but the one key, which is what makes the comparison meaningful: differences in results are differences in the transport representation, not in the problem being solved.
The default is unchanged. A model that does not set QUALITY_SOLVER behaves exactly as it did before, bit for bit.
Both new engines solve the one-dimensional advection–reaction–dispersion equation, which is Chapter 5's Equation 5.1 with the dispersion term retained rather than absorbed into the tank model:
\[\frac{\partial c}{\partial t} = -\frac{\partial(uc)}{\partial x} + \frac{\partial}{\partial x}\left(D\frac{\partial c}{\partial x}\right) + r(c)\]
where \(c\) is concentration, \(u\) the cross-sectionally averaged velocity, \(D\) the longitudinal dispersion coefficient, and \(r(c)\) the reaction rate. The three terms are advection, dispersion and reaction, and the two engines differ chiefly in how they treat the first.
The equation is solved by operator splitting: within a transport step, advection is applied first and dispersion second, each as a complete step (a Lie, or first-order, split). Reaction is applied afterwards. The splitting error is therefore \(O(\Delta t)\) rather than the \(O(\Delta t^2)\) a symmetric Strang split would give. This is a deliberate choice rather than an accuracy claim: the advective substep is already limited by a Courant condition, and the dispersion solve is unconditionally stable, so the first-order split costs little and keeps the sequence simple to reason about.
Each conduit is divided into a fixed number of cells of length \(\Delta x\), sized at initialization from the conduit length and the [TRANSPORT_OPTIONS] TARGET_DX key. Node storage is represented separately; cells hold only conduit water. Species are stored species-major, so all cells of one species are contiguous — the layout the flux kernels sweep.
Cell wetted area is taken from the hydraulic solution each routing step, so the transport mesh always describes the same water the hydraulic engine routed. A cell whose area falls below a dryness threshold is skipped rather than divided by, and its mass is held rather than discarded.

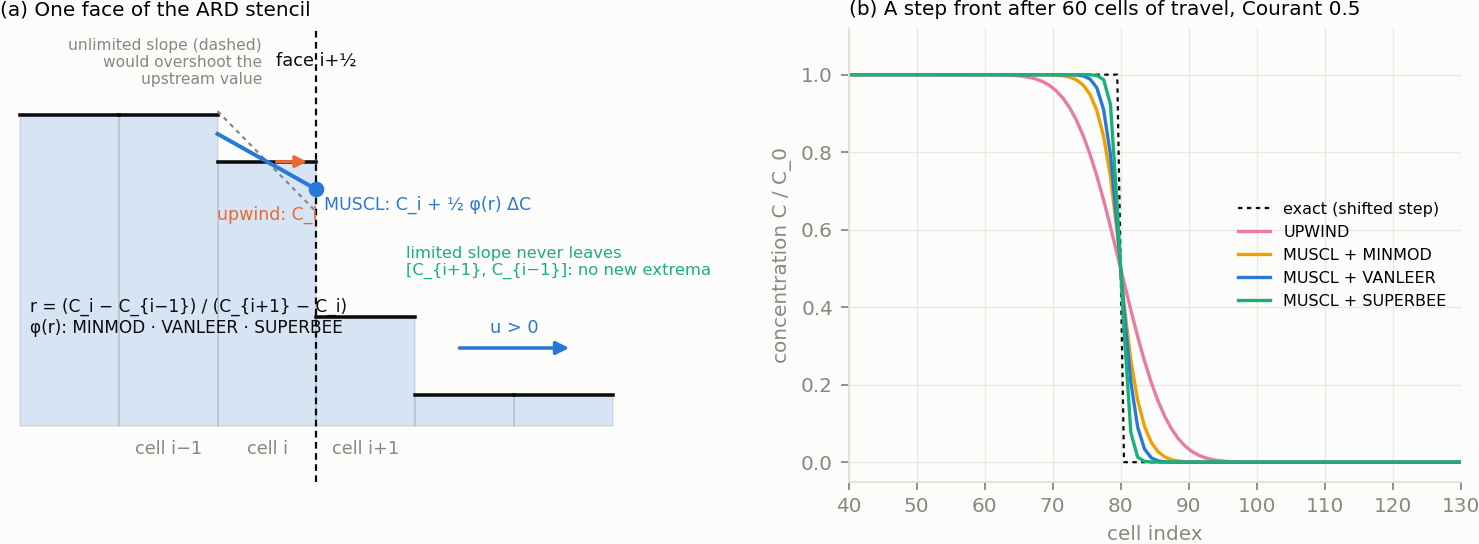

Face fluxes are computed with a flux-limited high-resolution scheme. A first-order upwind flux is computed for stability, a higher-order correction is computed for accuracy, and the correction is limited so that the result introduces no new extrema — the flux-corrected transport idea, applied here in the form Leonard describes for conservative advection schemes (Leonard, 1991). Without limiting, a second-order scheme produces oscillations ahead of and behind a sharp front, which for a concentration means values below zero.
The scheme is selected with [TRANSPORT_OPTIONS] SCALAR_SCHEME and the limiter with LIMITER:
| Key | Value | Behaviour |
|---|---|---|
SCALAR_SCHEME | UPWIND | First-order upwind alone — monotone, strongly diffusive |
MUSCL | Second-order reconstruction with limiting (default) | |
LIMITER | MINMOD | Most diffusive of the limited options; safest on rough data |
VANLEER | Smooth, symmetric; the usual default | |
SUPERBEE | Least diffusive; sharpens fronts, can over-steepen smooth profiles |
A useful way to read the table: UPWIND never produces a value outside the range of its neighbours but smears a sharp front over many cells; SUPERBEE keeps the front nearly intact but will convert a smooth gradient into a staircase. VANLEER is between them and is what a model should use unless a specific reason argues otherwise.
The advective step is subcycled to satisfy a Courant condition
\[C = \frac{u\,\Delta t_{sub}}{\Delta x} \le C_{max}\]
with the substep count chosen so the condition holds in every wet cell. The subcycling is internal to the transport step; the hydraulic solution is frozen across it, which means refining the transport step refines transport alone.
A worked example. A 400 ft conduit at TARGET_DX = 50 ft has eight cells. Water moving at 4 ft/s over a 60 s routing step covers 240 ft — nearly five cells — so a single explicit step would be violently unstable. The engine computes \(C = 4 \times 60 / 50 = 4.8\), and with \(C_{max} = 0.9\) takes \(\lceil 4.8/0.9 \rceil = 6\) substeps of 10 s each. Nothing in the deck changes; the cost is six flux sweeps instead of one. Halving TARGET_DX doubles both the cell count and the substep count, so refinement is quadratic in cost — which is why TARGET_DX is the key worth thinking about before reaching for a shorter routing step.
The dispersion term is solved implicitly along each conduit chain with a tridiagonal (Thomas) solve, which is unconditionally stable and so places no additional restriction on the step size. Chains span splice junctions, so a conduit interrupted by a virtual junction disperses as one length rather than as two.
The coefficient \(D\) is set by [TRANSPORT_OPTIONS] DISPERSION:
| Mode | Coefficient |
|---|---|
OFF (default) | \(D = 0\); the dispersion solve is skipped entirely |
VALUE | A single user-supplied \(D\), in ft²/s or m²/s |
FISCHER | Computed per conduit from the local hydraulics |
The FISCHER closure follows the shear-flow dispersion relations collected by Fischer et al. (1979), which build on Taylor's analysis of dispersion in a tube (Taylor, 1953) and Elder's extension to open-channel shear:
\[D = 0.011\,\frac{u^2 B^2}{Y\,u_*}, \qquad u_* = \sqrt{g Y S}\]
with \(B\) the surface width, \(Y\) the mean depth, \(S\) the friction slope and \(u_*\) the shear velocity. The coefficient is recomputed each step from the current hydraulics, so it responds to a rising limb rather than describing one design condition.
In a shear-dominated open channel, mechanical dispersion arising from the velocity profile exceeds molecular diffusion by several orders of magnitude, so the coefficient is a property of the flow field rather than of the transported substance — which is why the same coefficient is applied to every species, including temperature (§9.4).
Magnitudes worth recognising. For the 1.5 ft pipe at 4 ft/s used above, flowing half full, \(D\) from the Fischer closure lands in the range of a few ft²/s. Molecular diffusion of a dissolved solute is around \(10^{-8}\) ft²/s — eight orders of magnitude smaller, which is why no mode of this key offers it. A user-supplied VALUE far below 0.1 ft²/s is almost always a unit error rather than a modelling choice.
When DISPERSION OFF is in effect the dispersion kernel is not merely passed a zero coefficient; it is not entered at all, so results are identical to a build without the dispersion path.
The Lagrangian engine represents each conduit as an ordered slab of water parcels — segments with a volume and a concentration — that move with the flow rather than past a fixed mesh. Numerical diffusion of a front is therefore not introduced by the advection scheme at all: a parcel carries its concentration unchanged until it mixes.

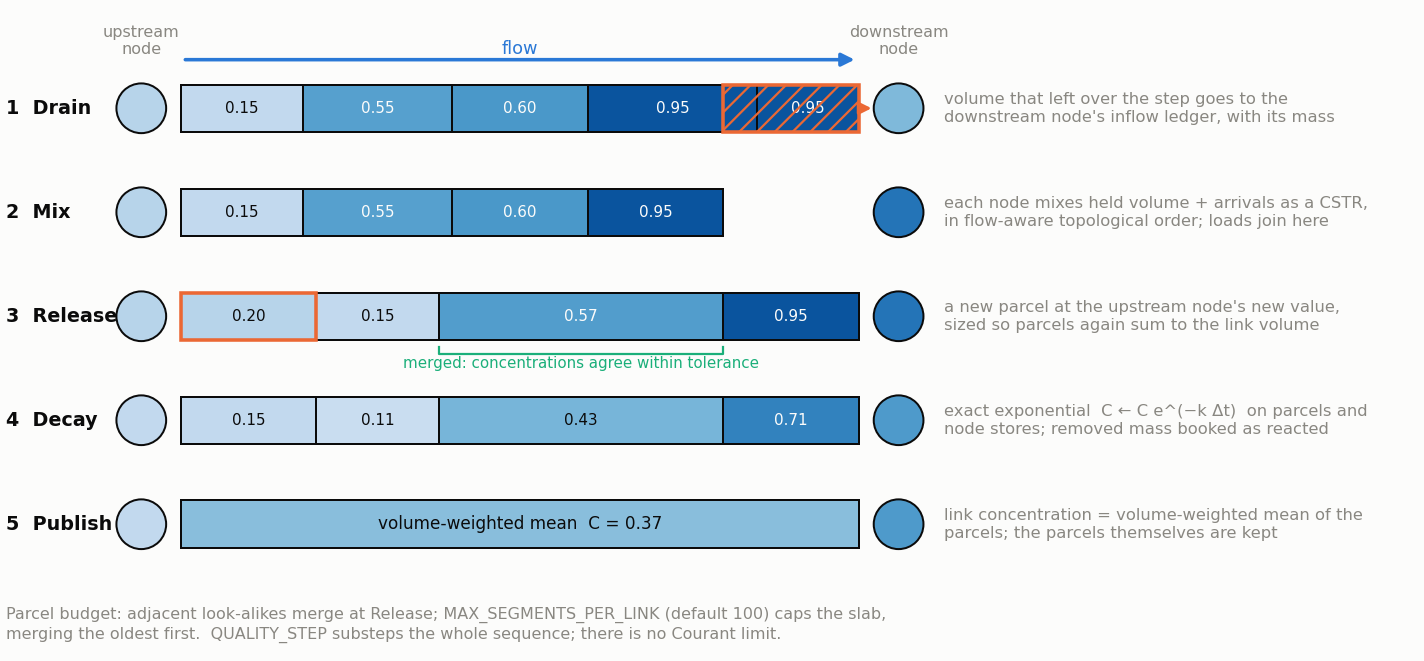

Each transport step proceeds in five phases:
Cycles in the node ordering are broken in index order, and the residue is carried in the ledger to the next step rather than dropped.
The parcel budget is what makes this tractable. Left alone, a conduit under steady flow gains one parcel per step forever. Two mechanisms bound it: adjacent parcels whose concentrations agree within a tolerance are merged at the RELEASE phase, and [OPTIONS] MAX_SEGMENTS_PER_LINK (default 100) caps the slab, with the oldest parcels merged when the cap is reached. Under plug flow with a constant inlet concentration, merging collapses the whole link back to a single parcel every step and the cost is trivial; under a rapidly varying inlet, the cap is what stops the memory growing without limit — at the price of blending the oldest resolution first, which is the right end to lose.
[OPTIONS] QUALITY_STEP substeps the whole five-phase sequence within a routing step. Unlike the ARD subcycling above, this is user-chosen rather than derived from a stability condition: LARD has no Courant limit, because parcels move with the flow rather than past a mesh. The key exists for accuracy of the node mixing, not for stability, and omitting it (or setting it at or above the routing step) degenerates to a single substep and is bit-identical to a model that never set it.
Because parcels do not exchange mass by construction, dispersion under LARD is introduced explicitly, by a random-walk particle method: particles sample the vertical shear profile to estimate inter-parcel exchange, and the estimated exchange is applied to the parcel field. Particles carry no mass themselves — they are an instrument for estimating the exchange coefficient, not a second representation of the solute. The random draw is keyed by a deterministic seed ([OPTIONS] RWPT_SEED), so a model gives the same answer on every run and on every machine.
Two sections supply species mass directly to the transport domain, independent of the hydraulic inflows:
[TRANSPORT_BOUNDARIES] sets the concentration carried by water entering at a node.[TRANSPORT_SOURCES] applies a distributed mass rate along a conduit, spread over its cells in proportion to cell length.A negative rate denotes extraction rather than an error. Extraction is clamped to the mass the element actually holds, so a request larger than the available mass removes what is there and no more; the unmet portion is counted and summarized at the end of the run rather than silently satisfied by driving a concentration negative. Extraction clamps routinely while a system fills — a near-empty element cannot satisfy any withdrawal — so a nonzero clamp count is not by itself a modelling error.
Both sections address multi-species reaction species (Chapter 8) rather than [POLLUTANTS] rows, which take their loads through the ordinary [INFLOWS] and washoff pathways. A worked pair:
and in model.ard:
A boundary sets the concentration carried by water entering at a node; a source injects (or, negative, extracts) mass along a conduit independent of its flow. Per-conduit dispersion overrides live in the same file and win over the global model on the conduits they name.
All three engines report through the same continuity table described in Chapter 5. Two caveats apply to the newer engines:
[TRANSPORT_SOURCES], which addresses reaction species, therefore appears in the continuity error rather than as a labelled inflow term. All three engines now apply treatment expressions, the multi-species reaction system, and the bed zone of §9.3.11; there are no remaining silent bypasses, and any configuration an engine cannot honour is refused or warned by name at model open rather than quietly ignored.The Eulerian engine is implemented in src/engine/transport/components/EulerianArdComponent/, with the shared flux and dispersion kernels in src/engine/transport/fvkernels/. The Lagrangian engine is in src/engine/quality/lard/ — SegmentStore.hpp for the parcel slabs, LagrangianSolver.hpp for the five-phase step, and RwptDispersion.hpp for the random-walk closure. Engine selection is resolved in src/engine/core/SWMMEngine.cpp, and the shared clamp bookkeeping for negative sources is in src/engine/quality/NegativeSources.hpp.
