Chapter 2: Meteorology

2.1 Precipitation

2.1.1 Representation

Precipitation is the principal driving force in rainfall-runoff-quality simulation. Stormwater runoff and nonpoint source runoff quality are directly dependent on the precipitation time series. These time series can range from just a few time periods for a single event to thousands of time periods used for a multi-year simulation. Within SWMM, the Rain Gage object is used to represent a source of precipitation data. Any number of Rain Gages may be used, data permitting, to represent spatial variability in precipitation patterns. Precipitation data for a specific Rain Gage is supplied either as a user-defined Time Series or through an external data file. Several different file formats are supported for data distributed by the U.S. National Climatic Data Center and Environment Canada as well as a standard user-prepared format. Because SWMM is a fully dynamic model that accounts for physical processes whose time scales are on the order of minutes or less, SWMM should not be run with either daily average or storm-averaged precipitation data.

Note that precipitation is often used synonymously with rainfall, but precipitation data may also include snowfall. Because both are simply reported as incremental intensities or depths, the SWMM program differentiates between rainfall and snowfall by a user-supplied dividing temperature. In natural areas, a surface temperature of 34° to 35° F (1-2° C) provides the dividing line between equal probabilities of rain and snow (Eagleson, 1970; Corps of Engineers, 1956). However, this separation temperature might need to be somewhat lower in urban areas due to warmer surface temperatures.

2.1.2 Single Event v. Continuous Simulation

Models might be used to aid in urban drainage design for protection against flooding for a certain return period (e.g., five or ten years), or to protect against pollution of receiving waters at a certain frequency (e.g., only one combined sewer overflow per year). In these contexts, the frequency or return period needs to be associated with a very specific parameter. That is, for rainfall one may speak of frequency distributions of inter-event times, total storm depth, total storm duration or average storm intensity, all of which are different (Eagleson, 1970, pp. 183-190). But for the aforementioned objectives, and in fact, for almost all urban hydrology work, the frequencies of runoff and quality parameters are required, not those of rainfall. Thus, one may speak of the frequencies of maximum flow rate, total runoff volume, or total pollutant loads. These distributions are in no way the same as for similar rainfall parameters, although they may be related through analytical methods (Howard, 1976; Chan and Bras, 1979; Hydroscience, 1979; Adams and Papa, 2000). Finally, for pollution control, the real interest may lie in the frequency of water quality standards violations in the receiving water, which leads to further complications.

SWMM is capable of simulating both single rainfall events as well as long-term time histories (e.g. several years or more) of a continuous precipitation record. In fact, the only distinctions between the two as far as SWMM is concerned is the simulation duration requested by the user and the need to supply meaningful initial conditions when only a single event is simulated.

Continuous simulation offers an excellent, if not the only method for obtaining the frequency of events of interest, be they related to quantity or quality. But it has the disadvantages of a higher run time and the need for a continuous rainfall record. This has led to the use of a "design storm" or "design rainfall" or "design event" in a single event simulation instead. Of course, this idea long preceded continuous simulation, before the advent of modern computers. However, because of inherent simplifications, the choice of a design event leads to problems.

2.1.3 Temporal Rainfall Variations

The required time interval used to describe rainfall variations over time is a function of the catchment response to rainfall input. Small, steep, smooth, impervious catchments have fast response times, while large, flat, pervious catchments have slower response times. As a generality, shorter time increment data are preferable to longer time increment data, but for a large (e.g., 10 mi2 or 26 km2) subcatchment (coarse schematization), even the hourly inputs usually used for continuous simulation may be appropriate. Rainfall data with intervals larger than 1-hour (such as average daily rainfall or event-averaged rainfall) must be suitably disaggregated (Socolofsky et al., 2001) before they can be used in SWMM.

The rain gage itself is usually the limiting factor. It is possible to reduce data from 24-hour charts from standard 24-hour, weighing-bucket gages to obtain 7.5-minute or 5-minute increment data, and some USGS float gages produce no better than 5-minute values. Shorter time increment data may usually be obtained only from tipping bucket gage installations.

The rainfall records obtained from a gage may be of mixed quality. It may be possible to define some storms down to 1 to 5 minute rainfall intensities, while other events may be of such poor quality (because of poor reproduction of charts or blurred traces of ink) that only 1-hour increments can be obtained.

2.1.4 Spatial Rainfall Variations

Even for small catchments, runoff and consequent model predictions (and prototype measurements) may be very sensitive to spatial variations of the rainfall. For instance, thunderstorms (convective rainfall) may be highly localized, and nearby gages may have very dissimilar readings. For modeling accuracy (or even more specifically, for a successful calibration of SWMM), it is essential that rain gages be located within and adjacent to the catchment.

SWMM accounts for the spatial variability of rainfall by allowing the user to define any number of Rain Gage objects along with their individual data sources, and assign any rain gage to a particular SWMM Subcatchment object (i.e., land parcel) from which runoff is computed. If multiple gages are available, this is a much better procedure than is the use of spatially averaged (e.g., Thiessen weighted) data, because averaged data tend to have short-term time variations removed (i.e., rainfall pulses are "lowered" and "spread out"). In general, if the rainfall is uniform spatially, as might be expected from cyclonic (e.g., frontal) systems, these spatial considerations are not as important. In making this judgment, the storm size and speed in relation to the total study area size must be considered.

Storm movement can significantly affect hydrographs computed at the catchment outlet (Yen and Chow, 1968; Surkan, 1974; James and Drake, 1980; James and Shtifter, 1981).When more than one gage is available to apply to the simulation, it is possible to simulate moving storms, as rainfall in one part of the basin may be different from rainfall in another part of the basin. Movement of a storm in the downstream direction increases the hydrograph peak, while movement upstream tends to level out the hydrograph (Surkan, 1974; James and Drake, 1980; James and Shtifter, 1981).

For detailed simulation of large cities, radar rainfall data are very useful. Commercial firms specializing in provision of radar rainfall values may be able to place highly spatially and temporally variable rainfall data into a time series format easily input to SWMM (e.g., Hoblit and Curtis, 2002; Meeneghan et al., 2002, 2003; Vallabhaneni, 2002). Radar data are spatially averaged over uniform grid cells of 1 km2 or larger and therefore each cell would cover a number of runoff subcatchments. In this case one could simply use a separate Rain Gage object for each grid cell that overlaps the study area, and assign the nearest cell as the subcatchment's source of rainfall data. A more sophisticated approach is to define a separate Rain Gage for each subcatchment along with a weighting matrix W whose entries wij represent the fraction of area from subcatchment i that is contained in grid cell j. Then at any time t the vector of subcatchment rainfalls It would equal the vector of cell rainfall values Rt multiplied by the weighting matrix W. These data for each time period could be placed in a standard SWMM user-prepared rainfall file for direct use by SWMM (see below).

2.1.5 Precipitation Scaling Factors

In addition to assigning different rain gages to different subcatchments, SWMM provides two levels of multiplicative scaling factors that adjust the precipitation a subcatchment receives from its assigned gage. Gage-level factors correct systematic bias in the measurement itself, while subcatchment-level factors represent spatial differences between the gage location and the land parcel being modeled. All factors default to 1.0, must be positive, and enter the calculation only as multipliers, so a model that does not use them behaves exactly as if the factors were absent.

At the gage level, each Rain Gage object accepts an optional rainfall scale factor *SFg*. It is applied to every precipitation value read from the gage's data source, together with the units conversion and the monthly rainfall adjustment factor described in Section 2.7:

\[I_{g} = SF_{g}\ f_{R,m}\ I_{raw}\]

(2-12)

where *Iraw* is the precipitation intensity read from the gage's time series or file (after conversion to intensity units), *fR,m* is the monthly rainfall adjustment factor for month m (Section 2.7, equal to 1.0 by default), and *Ig* is the resulting gage precipitation intensity. Each gage also has a snow catch factor *SCFg* that compensates for the catch deficiency most gages exhibit during snowfall; its physical basis is discussed with the snowmelt model in Chapter 6 (see Chapter 6). When two gages share the same time series (co-gages), the secondary gage's precipitation is the primary's value re-scaled by the ratio of the two gages' scale factors.

At the subcatchment level, each subcatchment accepts an optional rainfall scale factor *φR,j* and snowfall scale factor *φS,j. During each time step the gage intensity is first partitioned into rain or snow by comparing the current air temperature against the dividing temperature between rain and snow (see Chapter 6); the scale factors are then applied to the appropriate component. For subcatchment *j served by gage g:

\[P_{rain,j} = I_{g}\ \varphi_{R,j}\]

(2-13)

\[P_{snow,j} = I_{g}\ SCF_{g}\ \varphi_{S,j}\]

(2-14)

Note that the gage snow catch factor and the subcatchment snowfall scale factor compose multiplicatively rather than one overriding the other. They represent different physical effects: *SCFg* is an instrument correction for the catch deficiency of a particular physical gage, while *φS,j* is a spatial adjustment (orographic gradients, canopy interception, drifting) for a particular land parcel. The same distinction applies on the rain side, where *SFg* corrects gage bias and *φR,j* represents spatial variation.

Typical uses of these factors include:

  • correcting a known measurement bias at a gage (e.g., wind-induced under-catch) without editing its recorded time series,
  • applying a uniform climate-change adjustment (e.g., increasing all rainfall by 10 percent) to an existing precipitation record,
  • representing orographic or other spatial precipitation gradients when several subcatchments must share a single distant gage,
  • calibration, since the factors can also be set through the runtime API while a simulation is in progress.

The gage rainfall scale factor is supplied as an optional trailing value on a [RAINGAGES] line, following the snow catch factor. The subcatchment factors are supplied as optional ninth and tenth values on a [SUBCATCHMENTS] line, following the snow pack name; a * may be entered as a placeholder in the snow pack field so that the scale factors can be reached when no snow pack is assigned:

[SUBCATCHMENTS]
;;Name RainGage Outlet Area %Imperv Width %Slope CurbLen Snowpack RainScale SnowScale
S1 G1 N1 5.0 40 500 0.5 0 * 1.15 0.90

Two limitations should be noted. First, RDII unit hydrographs (Chapter 7) are driven directly from the rain gage rather than from a subcatchment, so the gage-level scale factor affects RDII but the subcatchment-level factors do not. Second, rainfall prescribed directly through the runtime API is an absolute injection and is deliberately not scaled by any of these factors.

Implementation. The gage-level pipeline of Equation 2-12 is applied in convertRainfall() and the per-subcatchment rain/snow split with subcatchment scale factors (Equations 2-13 and 2-14) in splitPrecip(), both in src/engine/hydrology/Gage.cpp (see openswmm::gage::splitPrecip). The factors are stored in openswmm::GageData (scale_factor, snow_factor) and openswmm::SubcatchData (rain_scale_factor, snow_scale_factor), parsed in src/engine/input/handlers/CatchmentHandler.cpp, and exposed for runtime modification in src/engine/core/openswmm_subcatchments_impl.cpp.

2.2 Precipitation Data Sources

2.2.1 User-Supplied Data

Many SWMM analyses will rely upon rainfall data supplied by the user, on the basis of measurements made at the closest rain gages to the catchment, or on an assumed design storm, either "real" (that is, derived from actual measurements) or "synthetic" (derived from an assumed duration and temporal distribution). Construction of synthetic design storms is described in many texts and manuals, e.g., Chow et al. (1988), King County Department of Public Works (1995), Bedient et al. (2013); SWMM does not supply synthetic design storms automatically, since the emphasis is more properly on use of measured data. Measured data may be from National Weather Service (NWS) or Environment Canada sites, as described below, from local agencies (e.g., utilities), from special monitoring programs (e.g., by the USGS or at a university), or from several other sources, even from home weather stations. Naturally, the quality of any data source should be investigated.

User-supplied rainfall data are provided to SWMM using a Rain Gage object. The user specifies the format in which the rainfall data were recorded (as intensity, volume, or cumulative volume), the time interval associated with each rainfall reading (e.g., 15 minutes, 1 hour, etc.), the source of the data (the name of a Time Series object or name of a Rainfall file), and the ID name of the recording station or data source if a file is being used.

For rainfall time series, only periods with non-zero precipitation need be included in the series. Using a Time Series object for user-supplied rainfall data makes sense for single-event or short duration simulation periods where there are a limited number of Rain Gage objects. In fact it is possible to create several different time series for a given rain gage in a SWMM project, where each contains a different rainfall event to be analyzed. Then all one needs to do is select the appropriate time series for the scenario of interest.

If a Rainfall file is used for user-supplied rainfall data then it must follow SWMM's standard user-prepared format. Each line of the file contains the station ID, year, month, day, hour, minute, and non-zero precipitation reading, each separated by one or more spaces. There is no need to include time periods with zero readings. An excerpt from a sample user-prepared Rainfall data file might look as follows (i.e., Station STA01 recorded 0.12 inches of rainfall between midnight and one am on June 12, 2004):

Station Year Month Day Hour Minute Precipitation (in)
STA01 2004 6 12 00 00 0.12
STA01 2004 6 12 01 00 0.04
STA01 2004 6 22 16 00 0.07

Using a Rainfall file to provide precipitation data is more convenient when a long-term continuous simulation is being made or when there are many rain gages in a project. Note that it is possible for a single user-prepared Rainfall file to contain data from more than one recording station or external data source as would be the case in the radar data example discussed previously.

SWMM's rainfall Time Series and user-prepared Rainfall files treat the data as "start-of-interval" values, meaning that each rainfall intensity or depth is assumed to occur at the start of its associated date/time value and last for a period of time equal to the gage's recording interval. Most rainfall recording devices report their readings as "end-of-interval" values, meaning that the time stamp associated with a rainfall value is for the end of the recording interval. If such data are being used to populate a SWMM rainfall time series or user-prepared rainfall file then their date/time values should be shifted back one recording interval to make them represent "start-of-interval" values (e.g., for hourly rainfall, a reading with a time stamp of 10:00 am should be entered into the time series or file as a 9:00 am value).

2.2.2 Data from Government Agencies

SWMM can also use rainfall data from files provided directly from US and Canadian government agencies. The National Weather Service (NWS) makes available historical hourly precipitation values (including water equivalent of snowfall depths) for about 5,500 observational stations around the U.S., with the periods of record usually beginning in the late 1940s. Fifteen-minute data are available for over 2,400 stations, with records typically beginning in the early 1970s. The repository for U.S. weather data is the National Oceanic and Atmospheric Administration (NOAA) National Climatic Data Center (NCDC), located in Asheville, North Carolina. Key access information is provided below:

National Climatic Data Center

Climate Services Branch

151 Patton Avenue

Asheville, NC 28801

Telephone: 828-271-4800

Web: http://www.ncdc.noaa.gov/

The NCDC digital data bases that house the precipitation data are designated as DSI-3240 for hourly precipitation and DSI-3260 for 15-minute precipitation. NOAA's Climate Data Online (CDO) service at http://www.ncdc.noaa.gov/cdo-web provides free access to these archives in addition to station history information. It features an interactive map application that helps locate a recording station closest to a site of interest and allows one to request precipitation data for a stipulated period of record. After a data request has been made through CDO the user receives an email with a link to a web page where the data can be viewed with a web browser. The page can then be saved to file for future use with SWMM.

When requesting data from CDO be sure to specify the TEXT format option and not the CSV option so that SWMM can automatically recognize the file format and parse its contents. In addition, select the QPCP precipitation option, not the QGAG option, for 15-minute precipitation and make sure that the data flags are included.

Table 2.1 shows 15-minute precipitation data downloaded for station 410427 from Austin, Texas. The column headings represent:

Field Description
Station Cooperative recording station identifier
Date Date and time at end of fifteen minute recording period
QPCP Precipitation amount in hundredths of an inch (where 9999 or 99999 indicates a missing value)
Measurement Flag If present, a flag that denotes either the start or end of an accumulation period, a deleted period or a missing period
Quality Flag If present, a flag that indicates if the data value is erroneous
Units A flag indicating the precision of the recorded value where HI is for hundredths and HT for tenths of an inch

Hourly precipitation has a similar format except that the label 'HPCP' (for hourly precipitation) replaces 'QPCP' and there is no Units column since the data precision is always HT. These data sets only include periods with non-zero precipitation, use time stamps that mark the end of the recording interval, and use a time of '00:00' to refer to midnight of the previous day. SWMM recognizes these conventions, as well as missing value codes, when it reads a precipitation data file.

Table 2-1 15-minute precipitation data from NCDC Climate Data Online

STATION DATE QPCP Measurement Flag Quality Flag Units
COOP:410427 19970729 07:45 10 HT
COOP:410427 19970730 16:15 70 HT
COOP:410427 19970730 16:30 20 HT
COOP:410427 19970730 16:45 30 HT
COOP:410427 19970730 17:00 50 HT
COOP:410427 19970730 17:15 30 HT
COOP:410427 19970730 17:30 10 HT
COOP:410427 19970730 18:00 20 HT
COOP:410427 19970730 18:15 20 HT
COOP:410427 19970730 18:45 10 HT
COOP:410427 19970730 19:30 10 HT
COOP:410427 19970731 08:30 10 HT

The NOAA-NCDC web site also allows one to access the complete set of hourly and 15-minute precipitation data for a particular station through an FTP server (see http://www.ncdc.noaa.gov/cdo-web/datasets). For each station, there is one file that houses data from 1948 (1971 for 15-minute data) to 1998 and then separate files for each year afterward. Each line in these files contains one day's worth of precipitation data using the format shown in Table 2.2. Note that the third and fourth lines are "wrapped around" as a continuation of the long second line. These are the same Austin, Texas data listed in Table 2.1 with the addition of an hour '2500' entry on each line that contains the daily total. Also these files use hour '2400' to represent midnight unlike hour '00:00' used in the Climate Data Online format.

Table 2-2 15-minute precipitation data in NCDC FTP file format

Data Record
15M41042707QPCPHT19970700290020745 00010 2500 00010
15M41042707QPCPHT19970700300111615 00070 1630 00020 1645 00030 1700 00050 1715 00030 1730 00010 1800 00020 1815 00020 1845 00010 1930 00010 2500 00270
15M41042707QPCPHT19970700310020830 00010 2500 00010

Earlier online data formats used by NCDC can also be recognized by SWMM. Examples of these formats, for the 15-minute Austin, Texas data, are shown in Tables 2.3 through 2.5. The formats for hourly data are identical, except that HPCP replaces QPCP and time stamps are always for hours only.

Long precipitation records are subject to meter malfunctions and missing data (for any reason). The NWS has special codes for its DSI-3240 and DSI-3260 formats denoting these conditions. They are explained in the NCDC documentation for each type. SWMM will note the number of recording periods with missing data, often denoted with a 9999 in the rainfall column. Rainfall time series used by the subcatchment object contain only good, non-zero precipitation data.

Table 2-3 15-minute precipitation data in comma-delimited format

COOPID CD ELEM UN YEAR MO DA TIME VALUE F F
410427 07 QPCP HT 1997 07 29 0745 00010
410427 07 QPCP HT 1997 07 29 2500 00010
410427 07 QPCP HT 1997 07 30 1615 00070
410427 07 QPCP HT 1997 07 30 1630 00020
410427 07 QPCP HT 1997 07 30 1645 00030
410427 07 QPCP HT 1997 07 30 1700 00050
410427 07 QPCP HT 1997 07 30 1715 00030
410427 07 QPCP HT 1997 07 30 1730 00010
410427 07 QPCP HT 1997 07 30 1800 00020
410427 07 QPCP HT 1997 07 30 1815 00020
410427 07 QPCP HT 1997 07 30 1845 00010
410427 07 QPCP HT 1997 07 30 1930 00010
410427 07 QPCP HT 1997 07 30 2500 00270
410427 07 QPCP HT 1997 07 31 0830 00010
410427 07 QPCP HT 1997 07 31 2500 00010

Table 2-4 15-minute precipitation data in space-delimited format

COOPID CD ELEM UN YEAR MO DA TIME VALUE F F
410427 07 QPCP HT 1997 07 29 0745 00010
410427 07 QPCP HT 1997 07 29 2500 00010
410427 07 QPCP HT 1997 07 30 1615 00070
410427 07 QPCP HT 1997 07 30 1630 00020
410427 07 QPCP HT 1997 07 30 1645 00030
410427 07 QPCP HT 1997 07 30 1700 00050
410427 07 QPCP HT 1997 07 30 1715 00030
410427 07 QPCP HT 1997 07 30 1730 00010
410427 07 QPCP HT 1997 07 30 1800 00020
410427 07 QPCP HT 1997 07 30 1815 00020
410427 07 QPCP HT 1997 07 30 1845 00010
410427 07 QPCP HT 1997 07 30 1930 00010
410427 07 QPCP HT 1997 07 30 2500 00270
410427 07 QPCP HT 1997 07 31 0830 00010
410427 07 QPCP HT 1997 07 31 2500 00010

Table 2-5 15-minute precipitation data in fixed-length format

Data Record
15M41042707QPCPHT19970700290020745 00010
15M41042707QPCPHT19970700290022500 00010
15M41042707QPCPHT19970700300111615 00070
15M41042707QPCPHT19970700300111630 00020
15M41042707QPCPHT19970700300111645 00030
15M41042707QPCPHT19970700300111700 00050
15M41042707QPCPHT19970700300111715 00030
15M41042707QPCPHT19970700300111730 00010
15M41042707QPCPHT19970700300111800 00020
15M41042707QPCPHT19970700300111815 00020
15M41042707QPCPHT19970700300111845 00010
15M41042707QPCPHT19970700300111930 00010
15M41042707QPCPHT19970700300112500 00270
15M41042707QPCPHT19970700310020830 00010
15M41042707QPCPHT19970700310022500 00010

SWMM can also automatically recognize and read Canadian precipitation data that are stored in climatologic files available from Environment Canada: (http://www.climate.weather.gc.ca). SWMM accepts hourly data from HLY03 and HLY21 files and 15-minute data from FIF21 files:

(http://climate.weather.gc.ca/prods_servs/documentation_index_e.html). Tables 2-6 and 2-7 show the layout of the data records in these files, respectively. The "*ELEM*" field would contain the code 123 for rainfall, the "*S*" field is for a numerical sign, the "*VALUE*" field has units of 0.1 mm, and the "*F*" and "*FLG*" fields are for data quality flags. SWMM makes the proper adjustment from "end-of-interval" to "start-of-interval" when processing the Canadian precipitation files. As of this writing, these files are only available through custom requests made to Environment Canada for a fee.

Table 2-6 Record layout of Canadian HYL0 and HLY21 hourly precipitation files

Daily Record of Hourly Data (HLY) - Length 186

STN ID YEAR MO DY ELEM S VALUE F

These fields are repeated 24 times.

Table 2-7 Record layout of Canadian FIF21 15-minute precipitation files

Daily Record of 15 Minute Data (FIF) - Length 691

STN ID YEAR MO DY ELEM S VALUE F FLG

These fields are repeated 96 times.

When a SWMM rain gage object utilizes any of the standard NCDC or Canadian formatted files, the only information required from the user is the name of file that contains the data and a station ID. The latter need not be the same as the station ID referenced in the file. Other user-editable rain gage properties, such as data format, interval, and units are overridden by the values associated with the particular data file. SWMM will also convert the depth units used in the file to the user's choice of unit system. For example, if an NCDC fifteen-minute rainfall file is used in a SWMM project that employs SI metric units then SWMM knows that the file's data must first be converted from tenths of an inch per fifteen minute period to mm/hr before they are used for any runoff calculations.

2.2.3 Rainfall Interface File

When precipitation data are supplied to SWMM from one or more external data files, the program first collates the data from these files into a single binary formatted Rainfall Interface file. It is this file that is accessed during the time steps of a SWMM simulation rather than the original rainfall data files. The Rainfall Interface file can be saved to disk and re-used in subsequent runs should the user care to do so. The layout of the interface file is as follows:

File Header:

  • File stamp ("SWMM5-RAIN") (10 bytes)
  • Number of SWMM rain gages in file (4-byte integer)

For each rain gage:

  • Recording station ID (80 bytes)
  • Gage recording interval (seconds) (4-byte integer)
  • Starting byte of rainfall data in file (4-byte integer)
  • Ending byte+1 of rainfall data in file (4-byte integer)

For each rain gage: For each time period with non-zero rainfall:

  • Date/time for start of period (8-byte double)
  • Rain depth (inches) (4-byte float)

The date/time value used here represents the number of decimal days from midnight of December 31, 1899 (i.e., the start of year 1900) expressed as a double precision floating point number. This is the same representation that SWMM uses internally for all date/time values.

2.3 Temperature Data

SWMM requires representative air temperature data when simulating snow melt or when using the Hargreaves method to compute potential evapotranspiration. A single set of time-dependent temperatures is applied throughout the study area. These data can come either from a user-generated time series or from a climate file. If a time series is used, then linear interpolation is used to obtain temperature values for times that fall in between those recorded in the time series. The first recorded temperature in the series is used for dates prior to the beginning date of the series while the last recorded temperature is used for dates beyond the end of the series. Temperatures should be in degrees F for SWMM projects built in US units or in degrees C for projects built in metric units.

A SWMM climate file contains values for minimum and maximum daily temperatures, (and optionally, evaporation and wind speed). Three climate file formats are supported:

  • the current NCDC GHCN-Daily Climate Data Online format
  • the older NCDC DS3200 (aka TD-3200) format,
  • Environment Canada's DLY daily climatologic file format, and
  • a standard user-prepared format.

The National Climatic Data Center's Global Historical Climatology Network - Daily (GHCN-Daily) dataset integrates daily climate observations from approximately 30 different data sources for about 30,000 stations across the globe. As with precipitation data, NOAA's Climate Data Online (CDO) service (http://www.ncdc.noaa.gov/cdo-web) provides free access to these archives. When making an online request for data to be used with SWMM users should do the following:

  • select the "Daily Summaries" dataset
  • select a range of dates to retrieve data from
  • use the interactive search feature to identify the recording station of interest
  • select the "Custom GHCN-Daily Text" output format
  • do not select any of the Station Detail and Data Flag options
  • select the maximum (TMAX) and minimum (TMIN) air temperature data types
  • select the average daily wind speed (AWND) and pan evaporation rate (EVAP) data types if available and if so desired.

Some stations will offer 24-hour wind movement (WDMV) instead of average daily wind speed which can be also be selected.

Table 2-8 shows the format of the data retrieved for Austin, Texas using the steps listed above. Note that the pan evaporation has units of tenths of millimeters, temperatures are in tenths of a degree Celsius, and 24-hour wind movement is in kilometers. (Had average daily wind speed (AWND) been available it would have units of tenths of meters per second). Data fields with all 9's in them indicate missing values. SWMM automatically makes the necessary unit conversions when reading this type of climate file.

The DS3200 (aka TD-3200) dataset was a predecessor to the GHCN that was discontinued in 2011. SWMM is able to read data files in this older format, an example of which is shown in Table 2-9 for June 1997 for Austin, Texas. Each line of the file begins with "DLY" and contains daily data for an entire month for a specific variable; hence the lines in the table are displayed in wrap around fashion. Table 2-10 describes the format of the ID portion of each record while Table 2-11 does the same for the data portion of the record.

Table 2-8 Contents of an NCDC GHCN-Daily climate file

STATION DATE EVAP TMAX TMIN WDMV
GHCND:USC00410427 19970706 13 350 228 0.7
GHCND:USC00410427 19970707 15 356 233 0.8
GHCND:USC00410427 19970708 10 344 239 1.0
GHCND:USC00410427 19970709 18 356 217 2.5
GHCND:USC00410427 19970710 61 361 222 1.9
GHCND:USC00410427 19970711 30 356 222 1.0
GHCND:USC00410427 19970712 41 356 222 0.8

Table 2-9 Contents of an NCDC DS3200 climate file

Data Record
DLY41042707EVAPHI19970699990060319 00004 00419 00043 00519 00000 00619 00036 01919 00075 03019 00018 0
DLY41042707TMAX F19970699990300119 00086 00219 00091 00319 00091 00419 00091 00519 00089 00619 00088 00719 00083 00819 00087 00919 00088 01019 00087 01119 00090 01219 00091 01319 00092 01419 00093 01519 00094 01619 00092 01719 00093 01819 00094)N1919 00095 02019 00092 02119 00089 02219 00085 02319 00090 02419 00090 02519 00093 02619 00092 02719 00092 02819 00094 02919 00093 03019 00096 0
DLY41042707TMIN F19970699990330119 00067 00219 00055 00319 00062 00419 00063 00519 00069 00619 00068 00719 00063 00819 00067 00919 00066 01019 00068 01119 00069 01219 00072 01319 00079 01419 00077 01519 00076 01619 00074 01719 00075 01819 00070)N1919 00074 02019 00073 02119 00069 02219 00067 02319 00085 22319 00077)S2419 00082 22419 00073 S2519 00089 22519 00069)N2619 00067 02719 00072 02819 00073 02919 00080 03019 00077 0
DLY41042707WDMV M19970699990300119 00027 00219 00025 00319 00017 00419 00016 00519 00022 00619 00022 00719 00018 00819 00016 00919 00020 01019 00050 01119 00022 01219 00018 01319 00053 01419 00039 01519 00037 01619 00005 01719 00051 01819 00079 01919 99999SS2019 00065A02119 00045 02219 00036 02319 00072 02419 00027 02519 00013 02619 00025 02719 00022 02819 00045 02919 00015 03019 00037 0

Table 2-10 Layout of the ID portion of an NCDC DS3200 climate file record

Field Width
Record Type (always = DLY) 3
Station ID 8
Element Type. Possible types used by SWMM are:
TMAX = daily maximum temperature, deg. F
TMIN = daily minimum temperature, deg. F
EVAP = daily evaporation, in or 1/100 in
WDMV = daily wind movement, miles
4
Element Measurement Units Code 2
Year 4
Month 2
Filler (= 9999) 4
Number of data portions that follow 3

Table 2-11 Layout of the data portion of an NCDC DS3200 climate file record

Field Width
Day of Month 2
Hour of Observation 2
Sign of Measured Value 1
Measured Value 5
Quality Control Flag 1 1
Quality Control Flag 2 1

(Repeated as many times as needed to contain one month of data)

The record layout of the Canadian DLY daily climatologic files is depicted in Table 2-12. The "*ELEM*" field contains 001 for daily maximum temperature and 002 for daily minimum temperature, the "*S*" field is for a numerical sign, the "*VALUE*" field has units of 0.1 deg C, and the "*F*" field is for a data quality flag. Note that only a single temperature file is used containing records for both daily maximum and daily minimum temperatures. More information on how to obtain these files from Environment Canada can be found at http://www.climate.weather.gc.ca.

Table 2-12 Record layout of Canadian DLY daily climatologic files

Monthly Record of Daily Data (DLY) - Length 233

STN ID YEAR MO ELEM S VALUE F

These two fields are repeated 31 times.

A user-prepared climate file is a plain text file where each line contains the following items, each separated by one or more spaces:

  • recording station name (no spaces allowed)
  • 4-digit year,
  • 2-digit month (Jan =1, Feb = 2, etc),
  • day of the month,
  • maximum temperature (deg F or C ),
  • minimum temperature (deg F or C),
  • evaporation rate (optional, in/day or mm/day),
  • wind speed (optional, miles/hr or km/hr).

The units used for the various data items must be compatible with the unit system being used in the SWMM project. For temperatures, this means degrees F for US units or degrees C for metric units. If no data are available for a given item on a particular date, then an asterisk should be entered as its value. Table 2-13 is an example of how the contents of the GHCN-Daily file of Table 2-1 would look in user-prepared format under US units.

Table 2-13 Example user-prepared climate file

Station Year Month Day Max Temp Min Temp Evaporation Wind Speed
410427 1997 07 06 95.0 73.0 0.051 0.7
410427 1997 07 07 96.1 73.9 0.059 0.8
410427 1997 07 08 93.9 75.0 0.039 1.0
410427 1997 07 09 96.1 71.1 0.071 2.5
410427 1997 07 10 97.0 72.0 0.240 1.9
410427 1997 07 11 96.1 72.0 0.118 1.0
410427 1997 07 12 96.1 72.0 0.161 0.8

Whenever a climate file is used in SWMM the user can specify a date, different from the simulation starting date, where the program begins reading from. From this date on the daily values are read from the file sequentially, without regard for what date the simulation clock is actually at. This feature is useful if one wants to use a rainfall file that covers one span of years and a climate file that covers another. An error message is issued and the program terminates if this starting date does not fall within the dates contained in the file. The same holds true if no file start date was supplied and the simulation start date does not fall within the dates contained in the climate file. When the simulation reaches a date that falls outside the last date in the file, then he program will keep using the temperature values that were last read from the file. The same convention applies whenever there is a gap of missing days or missing data in the file.

2.4 Continuous Temperature Records

When temperature data come from a climate file, a mechanism is needed to convert the daily max-min readings into instantaneous values at any point in time during the day. To do this, the minimum temperature is assumed to occur at sunrise each day, and the maximum is assumed to occur three hours prior to sunset. This scheme obviously cannot account for many meteorological phenomena that would create other temperature-time distributions but is apparently an appropriate one under the circumstances. Given the max-min temperatures and their assumed hours of occurrence, temperatures at any other time between these are found by sinusoidal interpolation, as sketched in Figure 2-2. The interpolation is performed, using three different periods: 1) between the maximum of the previous day and the minimum of the present, 2) between the minimum and maximum of the present, and 3) between the maximum of the present and minimum of the following day.

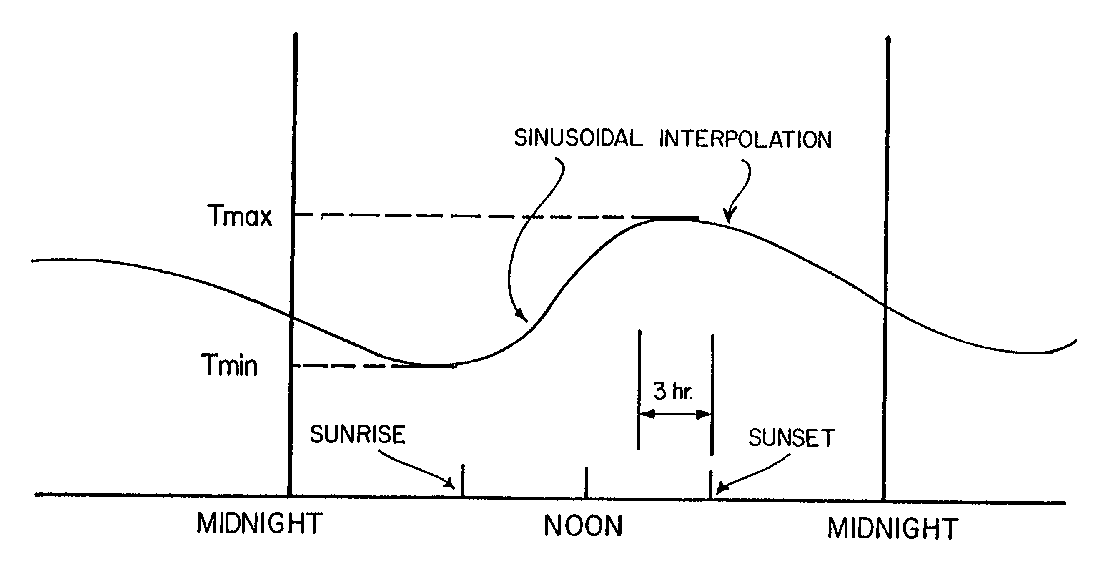

Figure 2-1 Sinusoidal interpolation of hourly temperatures.

The time of day of sunrise and sunset are easily obtained as a function of latitude and longitude of the catchment and the date. Techniques for these computations are explained, for example, by List (1966) and by the TVA (1972). Approximate (but sufficiently accurate) formulas used in SWMM are given in the latter reference. (Snowmelt computations that utilize temperatures are generally insensitive to these effects in SWMM.) Their use is explained briefly below.

The hour angle of the sun, h, is the angular distance between the instantaneous meridian of the sun (i.e., the meridian through which passes a line from the center of the earth to the sun) and the meridian of the observer (i.e., the meridian of the catchment). It may be measured in degrees or radians or readily converted to hours, since 24 hours is equivalent to 360 degrees or 2π radians. The hour angle is a function of latitude, declination of the earth, and time of day and is zero at noon, true solar time, and positive in the afternoon. However, at sunrise and sunset, the solar altitude of the sun (vertical angle of the sun measured from the earth's surface) is zero, and the hour angle is computed only as a function of latitude and declination,

\[cos\ h = -tan\ \delta \cdot tan\ \phi\]

(2-1)

where

h = hour angle at sunrise or sunset, radians, δ = earth's declination, a function of season (date), radians, and

φ = latitude of observer, radians.

The earth's declination is provided in tables (e.g., List, 1966), but for programming purposes an approximate formula is used (TVA, 1972):

\[\delta = \left( \frac{23.45\ \pi}{180} \right)\cos\left\lbrack \frac{2\pi}{365}(172 - D) \right\rbrack\]

(2-2)

where D is number of the day of the year (no leap year correction is warranted) and δ is in radians. Having the latitude as an input parameter, the hour angle is thus computed in [hours]{.underline}, positive for sunset, negative for sunrise, as

\[h = \left(\frac{12}{\pi}\right)\cos^{-1}(-tan\ \delta \cdot tan\ \phi)\]

(2-3)

The computation is valid for any latitude between the Arctic and Antarctic Circles, and no correction is made for obstruction of the horizon.

The hour of sunrise and sunset is symmetric about noon, true solar time. True solar noon occurs when the sun is at its highest elevation for the day. It differs from standard zone time, i.e., the time on clocks) because of a longitude effect and because of the "equation of time". The latter is of astronomical origin and causes a correction that varies seasonally between approximately ± 15 minutes; it is neglected here. The longitude correction accounts for the time difference due to the separation of the meridian of the observer and the meridian of the standard time zone. These are listed in Table 2-14. Note that time zone boundaries are very irregular and often are quite displaced from what might be expected on the basis of the local longitude, e.g., most of Alaska is much further west than the standard meridian for Alaska time of 135oW. The longitude correction is readily computed as

\[\Delta T_{LONG} = 4\frac{minutes}{degree}(\theta - SM)\]

(2-4)

where Δ*T*LONG = longitude correction, minutes (of time), θ = longitude of the observer, degrees, and SM = standard meridian of the time zone, degrees, from Table 2-14.

Note that Δ*T*LONG can be either positive or negative, and the sign should be retained. For instance, Boston at approximately 71°W has Δ*T*LONG = -16 minutes, meaning that mean solar noon precedes EST noon by 16 minutes. (Mean solar time differs from true solar time by the neglected "equation of time.")

The time of day of sunrise is then

\[H_{SR} = 12 - h + \frac{\Delta T_{LONG}}{60}\]

(2-5)

and the time of day of sunset is

\[H_{SS} = 12 + h + \frac{\Delta T_{LONG}}{60}\]

(2-6)

From these times, the hours at which the minimum (Tmin) and maximum (Tmax) temperatures

occur are Hmin = HSR and Hmax = HSS - 3, respectively.

Table 2-14 Time zones and standard meridians (degrees west longitude)

Time Zone Example Cities Standard Meridian
Newfoundland Std. Time St. Johns's, Newfoundland 52.5a
Atlantic Std. Time Halifax, Nova Scotia
San Juan, Puerto Rico
60
Eastern Std. Time New York, New York
Toronto, Ontario
75
Central Std. Time Chicago, Illinois
Winnipeg, Manitoba
Saskatoon, Saskatchewanb
90
Mountain Std. Time Denver, Colorado
Edmonton, Alberta
105
Pacific Std. Time San Francisco, California
Vancouver, British Columbia
Whitehorse, Yukon
120
Alaska Std. Time Anchorage, Alaska 135
Aleutian Std. Time Atka, Alaska 150
Hawaiian Std. Time Honolulu, Hawaii

aThe time zone of the island of Newfoundland is offset one half hour from other zones.

bSaskatchewan summer time is Mountain, winter is Central.

The temperature T at any hour H of the day can now be computed as follows:

  1. If H < Hmin then

    \[T = T_{\min} + \frac{\Delta T_{1}}{2}\ sin\left( \frac{\pi\left( H_{\min} - H \right)}{H_{\min} + 24 - H_{\max}} \right)\]

    (2-7)

where Δ*T*1 is the difference between the previous day's maximum temperature and the current day's minimum temperature.

  1. If HminHHmax then

    \[T = T_{avg} + \frac{\Delta T}{2}\ sin\left( \frac{\pi\left( H_{avg} - H \right)}{H_{\min} - H_{\max}} \right)\]

    (2-8)

where Tavg is the average of Tmin and Tmax, Δ*T* is the difference between Tmax and Tmin, and Havg is the average of Hmin and Hmax.

  1. If H > Hmax then

    \[T = T_{\max} - \frac{\Delta T}{2}\ sin\left( \frac{\pi\left( H - H_{max} \right)}{H_{\min} + 24 - H_{\max}} \right)\]

    (2-9)

2.5 Evaporation Data

Evaporation can occur in SWMM for standing water on subcatchment surfaces, for subsurface water in groundwater aquifers, for water flowing in open channels, for water held in storage units, and for water held in low impact development controls (e.g., green roofs, rain gardens, etc.). Single event simulations are usually insensitive to the evaporation rate, but evaporation can make up a significant component of the water budget during continuous simulation. SWMM allows evaporation rates to be stated as:

  • a single constant value,
  • a set of monthly average values,
  • a user-defined time series of daily values,
  • daily values read from an external climate file,
  • daily values computed from the daily temperatures in an external climate file.

Monthly and seasonal averages for evaporation are available in NOAA (1974) and Farnsworth and Thompson (1982). Another source of evaporation and evapotranspiration data in the U.S. is the AgriMet program of the U.S. Bureau of Reclamation:

(http://www.usbr.gov/pn/agrimet/proginfo.html).

However, AgriMet is aimed primarily at agricultural use, containing information on crop water use requirements, for instance. Generally, local evaporation data are difficult to obtain. Fortunately, totals are likely to represent large spatial areas more so than for precipitation. State climate agencies are often useful when searching for weather data. For instance, the Oregon Climate Service (http://www.ocs.orst.edu) includes daily pan evaporation data among its weather archives, and links are provided to other climate agencies regionally and nationwide.

The climate file source of evaporation data is the same climate file used to supply daily max-min temperatures that was described in section 2.3. For NCDC GHCN-Daily files one would request that records for the element EVAP be included in the file while for the Canadian DLY files one would do the same for daily pan evaporation (element code 151). For the user-supplied climate file, one simply adds an evaporation rate value after the daily minimum temperature entry in each record. If the file were only being used to supply evaporation and not temperatures one still has to enter asterisks (*) in the max and min temperature fields so that the file is read correctly.

Note that both the NCDC and Canadian DLY files report pan evaporation while SWMM expects actual evaporation. SWMM will accept a set of monthly pan coefficients, typically on the order of 0.7, used to convert pan evaporation to actual evaporation (Chow et al., 1988; Bedient et al., 2013). Also SWMM will automatically convert the units used for evaporation in these files into the ft/sec units used internally by SWMM. For all other data sources, the evaporation rate values must be in the same unit system as the rest of the data in a project. For US standard units this is inches/day while for SI metric units it is mm/day.

SWMM can also use the Hargreaves method (Hargreaves and Samani, 1985) to compute evaporation rates from the daily max-min temperatures contained in a climate file and the study area's latitude. The governing equation is:

\[E = 0.0023\left( \frac{R_{a}}{\lambda} \right)T_{r}^{1/2}\left( T_{a} + 17.8 \right)\]

(2-10)

where:

  • E = evaporation rate (mm/day)
  • Ra = water equivalent of incoming extraterrestrial radiation (MJm-2d-1)
  • Tr = average daily temperature range for a period of days (deg C)
  • Ta = average daily temperature for a period of days (deg C)
  • λ = latent heat of vaporization (MJkg-1)

    \[λ = 2.50 - 0.002361T_a\]

As noted in Hargreaves and Merkley (1998), for the equation to provide satisfactory results Tr and Ta must be averaged over a period of 5 or more days. SWMM therefore uses a 7-day running average of these variables derived from the record of daily max-min temperatures. The extraterrestrial radiation Ra is computed as:

\[R_{a} = 37.6d_{r}\left( w_{s}sin(\phi)\ sin(\delta) + cos(\phi)\ cos(\delta)\ sin(w_{s}) \right)\]

(2-11)

where:

  • dr = relative earth-sun distance

    \[d_r = 1 + 0.033\cos\left( \frac{2\pi J}{365} \right)\]

  • J = Julian day (1 to 365)
  • ws = sunset hour angle (radians)

    \[w_s = \cos^{-1}\left( - \tan(\phi)\tan(\delta) \right)\]

  • φ = latitude (radians)
  • δ = solar declination (radians)

    \[\delta = 0.4093\sin\left( \frac{2\pi(284 + J)}{365} \right)\]

2.5.1 Prescribed Subcatchment Evaporation Rates

All of the evaporation data sources listed above produce a single climate-derived evaporation rate that applies uniformly to every subcatchment in a project. SWMM also allows a potential evapotranspiration (PET) rate to be prescribed for individual subcatchments at runtime through its API. This supports applications where evaporative demand varies spatially — for example when PET is computed externally from land cover, energy-balance, or remotely sensed data — as well as coupling with external models that supply their own evaporative forcing.

A prescribed rate can either replace or augment the climate-derived rate. If *eclim* is the climate-derived evaporation rate (after the monthly adjustment of Section 2.7 and any pan coefficients have been applied) and *ep,j* is the rate prescribed for subcatchment j, then the potential rate used for that subcatchment is:

\[e_{j} = \begin{cases} e_{p,j} & \text{override mode} \\ e_{clim} + e_{p,j} & \text{additive mode} \\ e_{clim} & \text{no prescription} \end{cases}\]

(2-15)

Prescribed rates are supplied in the user's unit system (in/day for US units, mm/day for SI metric units) and are converted internally to ft/sec. A prescription can be flagged either to apply for a single time step (after which it automatically clears) or to persist until explicitly cleared, so a caller may set a rate once per day or update it continuously.

The resulting rate *ej* is consumed by every subcatchment-level evaporation pathway: standing water in depression storage on the subcatchment surface, water stored in any LID controls placed within the subcatchment, and upper-zone soil moisture in the subcatchment's groundwater aquifer (Chapter 5). It does not affect evaporation from open channels or storage nodes, which continue to use the climate-derived rate. In every pathway the prescribed value remains a potential rate — actual evaporation is still limited by the water available in each compartment, and the evaporated volumes flow into the normal runoff continuity totals so that mass balance is preserved.

Two precedence rules apply. A prescribed rate in override mode is used verbatim: it bypasses the "dry-only" evaporation option (which normally suppresses surface evaporation during rainfall) and is not modified by the monthly evaporation adjustment factors of Section 2.7. Callers who want such adjustments applied to a prescribed rate can read the current climate-derived rate through the API, apply their own factors, and prescribe the result.

Implementation. Prescribed PET is carried in the per-subcatchment forcing channel of openswmm::ForcingData, whose effective_evap_rate() helper implements Equation 2-15. It is consumed by the surface runoff solver (src/engine/hydrology/Runoff.cpp), the LID solver (src/engine/hydrology/LID.cpp), and the groundwater solver (src/engine/hydrology/Groundwater.cpp). The C API entry point is swmm_forcing_subcatch_evap() in src/engine/core/openswmm_forcing_impl.cpp, which performs the user-units-to-internal conversion.

2.6 Wind Speed Data

SWMM uses wind speed to refine the calculation of a melting rate for accumulated snow during times when there is precipitation in the form of rainfall (see Section 6.3.2). There are two options for providing wind speed data to SWMM:

  • as an average value for each month of the year (January – December)
  • from the same climate file used to supply daily max-min temperature and evaporation.

For the first option the same monthly average applies no matter which year is being simulated. The wind speed units are miles/hour for US units or km/hour for metric units. The default monthly values are all 0. The NCDC has compiled average monthly wind speeds for various locations throughout the US which can be found at:

http://www.ncdc.noaa.gov/sites/default/files/attachments/wind1996.pdf.

For the NCDC GHCN-Daily climate file, one can request that records for the average daily wind speed data element AWND or the 24-hour wind movement data element WDMV, whichever is available, be included in the file. For the user-supplied file, wind speed is added after the field for evaporation in each daily record (remember to place a * in the evaporation field if evaporation data is being supplied from some other source). SWMM automatically converts the units used for wind speed by the NCDC file, but for the user-supplied file they must be in miles/hour for US unit system data sets or in km/hour for metric data sets. The Canadian DLY file does not report daily wind speed.

2.7 Monthly Climate Adjustments

All of the meteorological inputs described in this chapter can be modified on a month-by-month basis through a set of climate adjustment factors supplied in the [ADJUSTMENTS] section of a SWMM input file. These adjustments allow a historical meteorological record to be perturbed without editing the underlying data — most commonly to evaluate climate-change scenarios, but also to correct known seasonal biases in a data source or to test model sensitivity. Four adjustments are available, each specified as twelve values, one per calendar month (January through December), as summarized in Table 2-15.

Table 2-15 Monthly climate adjustments available in the [ADJUSTMENTS] section

Keyword Applies to Operation Default
TEMP Air temperature Added to each temperature value (deg F or deg C) 0
EVAP Evaporation rate Multiplies the climate-derived rate 1.0
RAIN Precipitation Multiplies each rain gage's precipitation 1.0
CONDUCT Soil hydraulic conductivity Multiplies the conductivity used by infiltration 1.0

The temperature adjustment *ΔTm* for month m is additive and is applied to the air temperature obtained from whichever temperature data source is in use (time series or climate file, including the daily minimum and maximum values used for the interpolation of Section 2.4):

\[T_{adj} = T + \Delta T_{m}\]

(2-16)

The evaporation adjustment *fE,m* multiplies the evaporation rate produced by any of the data sources of Section 2.5 (constant, monthly, time series, climate file, or Hargreaves-computed):

\[E_{adj} = f_{E,m}\ E\]

(2-17)

The rainfall adjustment *fR,m* multiplies the precipitation intensity of every rain gage in the project and appears as part of the gage-level scaling pipeline of Equation 2-12. Because it is applied at the gage, it propagates to surface runoff, snowfall, and RDII alike.

The conductivity adjustment *fK,m* multiplies the saturated hydraulic conductivity (or infiltration capacity) used by the infiltration methods of Chapter 4 — the maximum and minimum infiltration rates of the Horton method and the hydraulic conductivity of the Green-Ampt and Curve Number methods:

\[K_{adj} = f_{K,m}\ K_{s}\]

(2-18)

Non-positive conductivity multipliers are replaced by 1.0. The conductivity adjustment is typically used to reflect seasonal variation in infiltration capacity, such as reduced conductivity when the ground is frozen. Note that the monthly evaporation adjustment is not applied to subcatchment PET rates prescribed through the runtime API in override mode (Section 2.5.1).

Implementation. The [ADJUSTMENTS] section is parsed by handle_adjustments() in src/engine/input/handlers/InfraHandler.cpp. The monthly arrays are held on openswmm::climate::ClimateState and applied once per day (or whenever the simulation month changes) in the climate update step of src/engine/core/SWMMEngine.cpp: the temperature adjustment is added to the current temperature, the evaporation adjustment multiplies evap_rate, the rainfall adjustment sets each gage's adjust_factor (see src/engine/hydrology/Gage.cpp), and the conductivity adjustment sets the infil_factor consumed by the infiltration solvers in src/engine/hydrology/Runoff.cpp.
